Description

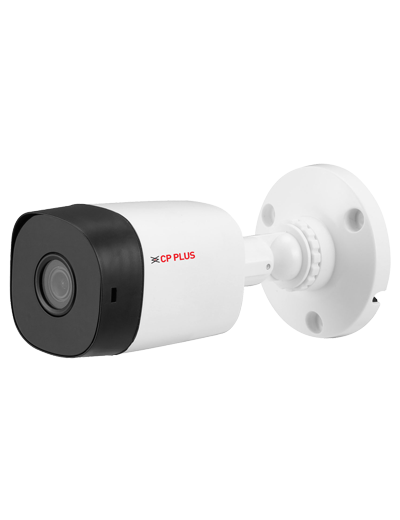

The CP Plus CP-USC-TC51PL2-V3 is a 5MP IR bullet camera designed for high-resolution surveillance with exceptional night vision capabilities. Ideal for both indoor and outdoor use, this camera delivers clear and detailed images even in challenging lighting conditions, making it perfect for monitoring large areas.
Features
- 1/2.7” 5MP CMOS Image Sensor (0.9407cm)
- Max. 25fps@5MP (16:9 video output)
- DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
- 3.6mm fixed lens (2.8mm optional)
- IR Range of 20 Mtrs., IP67
- OSD Menu, control over coaxial cable, 2D-DNR
- CVI/CVBS/AHD/TVI Switchable
Specifications
| Image Sensor | 1/2.7" 5MP PS CMOS (0.9407 cm) |
| Minimum Illumination | 0.02 Lux/F2.0, 30IRE, 0 Lux IR on |
| Shutter Speed | PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s |
| White Balance | Auto / Manual |
| Gain Control (AGC) | Auto / Manual |
| ICR | Auto (ICR)/Manual |
| Lens | 3.6mm (2.8mm optional) |
| Max Aperture | F2.0 |
| Iris | Fixed |
| Lens Type | Fixed lens/ Fixed Iris |
| Close Focus Distance | 2.8 mm: 0.8 m ; 3.6 mm: 1.2 m |
| Mount Type | M12 |
| S/N Ratio | More than 65dB |
| Privacy Mask | Off / On (8 area, rectangle) |
| DORI Distance | 2.8mm: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify) 3.6mm: 80.0m (Detect) 32m(Observe) 16m(Recognize) 8m(Identify) |
| Back Light Compensation | BLC / HLC / DWDR |
| Video Streaming | CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Angle of View | 3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V) |
| IR | IR Range of 20 Mtr., Smart IR |
| OSD | Multi-language |
| Casing | Plastic |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +131°F) / Less than 95% RH |
| Power Source | 12V DC ±30% |
| Power Consumption | Max. 3.7W (12V DC, IR on) |
| Weatherproof Standard | IP67 |
| Dimension | 69.8 mm × 69.8 mm × 149.3 mm |
| Weight | 0.15 kg |
